Cable Machine Buying Guide for Your Home Gym
Date Published: September 22, 2026
Updated on: September 23, 2026
I've been using and teaching people how to use cable machines in gyms for over 20 years. If you're looking to add functional training to your home gym then a cable machine is one of the best options, and buying one doesn't need to be complicated.
Choosing a cable machine for your home gym means looking beyond the headline weight stack. The type of machine, usable resistance, pulley system, dimensions, attachments and even delivery can all make a big difference. In this guide, I'll explain what matters, what doesn't, and what to check before you buy.
Cable Machine Vs Functional Trainer - Key Differences
The two terms get used interchangeably, and they're not quite the same thing.
Cable machine is the broader category — any machine that applies resistance through a cable and pulley system. That includes single towers, cable crossovers and rack-mounted systems.
A functional trainer is one type of cable machine: one with adjustable pulley positions, so resistance can be applied from any height and angle. Most full-size functional trainers have two independently adjustable cable stations, which means you can train both arms together or load each side on its own.
Put simply: every functional trainer is a cable machine, but not every cable machine is a functional trainer. This guide covers the whole category, though most of it focuses on functional trainers, since that's what suits the majority of home gyms.
Before You Buy — Start With Your Goals
Before comparing specifications, take a moment to think about how you will use the cable machine.
How will you use it?
- What are your goals – General strength training, building muscle, rehab & joint friendly training or sport-specific?
-
Frequency and session length – 2-3 times a week for an hour, or every day?
These factors influence the amount of resistance, attachments and size.
Who will use it?
- How many users - Just you, or multiple household members? Is there a difference in height or strength between users?
- Experience level – Have you used a cable machine before?
Where will it go?
- Ceiling height - Most cable machines are quite tall. Ensure you measure your ceiling height and allow extra clearance above this for pull-up and overhead movements.
- Floor space - Measure your space and allow clearance around the machine to actually use the cables.
- Assembly - Cable machines are best assembled in the room they will live in. They are heavy and will be very difficult to move after assembly.
Working through these first saves the two most common mistakes: buying a machine that doesn't fit the room, or one you outgrow as you get stronger.
Which Type Of Cable Machine Should You Choose?
Cable machines vary in two ways that matter: the style of the machine, and how the weight is loaded. The following should help you get clear on both and stop the category becoming confusing.
[BOX]
Note: Prices checked September 2026. Sale prices in this category change frequently, so treat these as a guide.
[/BOX]
Starting with the style
Single cable tower
One upright with a single adjustable cable station. The most compact freestanding option, and the cheapest way into cable training. Fine for rows, pulldowns, curls and single-arm work — but you can't do anything needing two cables at once.
Average price: £1,200
Dual adjustable pulley (functional trainer)
Two uprights with independently adjustable cable stations. The most versatile format and the usual choice for a home gym: flys, crossovers, presses and rotational work all become available, and you can load each side separately. Our JTX Calibre is one example.
Average price: £2,300
Cable crossover
A wider version of the same idea, with the uprights set further apart. The extra width suits movements that need separation between the pulleys, and it's common in commercial gyms. Needs considerably more floor space than a functional trainer.
Average price: £4,500
Rack-integrated cable system
Cables built into, or bolted onto, a power rack. Good if you already own a rack or want barbell and cable work in one footprint. The cable experience is usually a compromise against a dedicated machine.
Average price: £3,500
Wall-mounted
Fixed to a wall rather than standing on the floor, and often folding flat. The smallest footprint of anything here — but you need a solid wall, and a stud wall generally needs reinforcing first.
Average price: £1,300
How is the resistance loaded?
Selectorised weight stack
A stack of weights with a pin. Fastest to change, allows drop sets, and gives consistent increments. Costs more, and the stack size sets a ceiling on how heavy you can go.
Plate-loaded
You load your own weight plates onto pins. Cheaper upfront and makes sense if you already own plates — but changing weight is slow, which rules out drop sets, and the jumps between weights are coarser.
Digital resistance
Motors or electromagnetic resistance instead of plates. The most compact by far, with guided programmes and automatic tracking. Maximum resistance is usually well below a conventional stack, and most of the value sits behind a subscription.
Which one suits most home gyms?
For most people setting up at home, it comes down to space and how you want to load the weight.
If you have a wall and very little floor, a wall-mounted station is the only realistic option. If you already own a rack and a set of plates, a plate-loaded machine or a rack-mounted system makes the most of what you've got.
But if you're buying one machine to cover most of your training, and you have the floor space and the ceiling height for it, a selectorised dual adjustable pulley — a functional trainer with weight stacks — does more than anything else here. It's why they've become the default in home gyms, and why most of this guide focuses on them from now on.
| Type | Best for | Main advantage | Main compromise |
| Single cable tower | Small home gyms | Compact | Limited dual-cable exercises |
| Functional trainer | All-round home strength training | Maximum versatility | Larger footprint/cost |
| Cable crossover | Wide cable movements | Greater pulley separation | Needs more space |
| Wall-mounted | Multi-use rooms | Minimal footprint | Requires suitable wall/fixing |
| Rack-integrated | Barbell + cable training | Combines systems | More complex setup |
Choosing the machine that fits your room best is important. You don't want to end up with something you'll either never use or have to return because it doesn't fit.
The Costs People Don't Budget For
Cable machine listings typically quote a headline price which is rarely what you end up spending. Attachments, a bench and getting it into your house all add up, and the gap between the advertised figure and the real one can run to several hundred pounds.
Attachments. The most common surprise. Some machines include a usable set; others include a couple of handles and sell the rest separately. Attachments bought individually can add £200–400. When you're comparing two machines, compare what's in the box, not just the price on the page.
A bench. Not essential, but it's what unlocks pressing, incline work and supported rows. Budget £150–400 for something that will last.
Flooring. Rubber matting protects your floor, reduces noise and stops the machine shifting. For a footprint this size you're looking at £50–150, more if you're doing a whole room.
Delivery. This varies far more than people expect and it's worth checking before you buy:
- Kerbside or pallet — dropped at the end of your drive, and unloading it is your job. Some heavy machines ship this way as standard.
- Ground floor — brought inside, but no further.
- Room of choice — carried to where it's going.
It's worth confirming which of these you're getting. Knowing before delivery day means you can arrange a second pair of hands if you need one
Assembly. Most functional trainers take around two hours and need two people. Some retailers offer a paid installation service at checkout, which is worth considering if you can't easily find a second pair of hands.
Fixing and reinforcement. Wall-mounted units need something solid to fix to. A stud wall usually needs reinforcing first, which is a real job with a real cost.
Key Features to Consider
Once you've settled on a cable machine, the specifications start to matter. These are the ones that genuinely change how the machine feels and how long it stays useful.
Weight Stack Size & Configuration
Cable machines come with either one weight stack or two.
- Single stack: Both cables draw from the same stack. Cheaper and fine for most single-cable exercises.
- Dual stack: Each side has its own independent stack. This is what allows you to load each arm separately. It also means two people can use the machine at once.
On total resistance: When a machine advertises '180kg', that's normally both stacks added together - so 90kg per side. Always check whether a quoted figure is the total or per stack before comparing two machines.
Pulley Ratio
Cable machines use pulleys to route the cable from the weights stack to your hand. Depending on how that cable is routed, the weight you feel at the handle may not be the weight sitting on the stack.
- 2:1 ratio - the most common setup. Pull the handle two feet and the stack only rises one, so you feel about half the weight you selected. A 90kg stack gives you around 45kg at the handle.
- 1:1 ratio - what you select is what you feel. A 90kg stack gives you 90kg in the hand. Usually found on machines built for heavy pulling, like lat pulldowns.
Neither ratio is better. A 2:1 setup gives longer cable travel, which suits most functional training. A 1:1 setup gives you more resistance from a smaller stack, which suits heavier pressing and rowing.
What matters is that you know which you're buying. If a manufacturer doesn't publish the ratio, ask before you order — otherwise you're comparing numbers that don't mean the same thing.

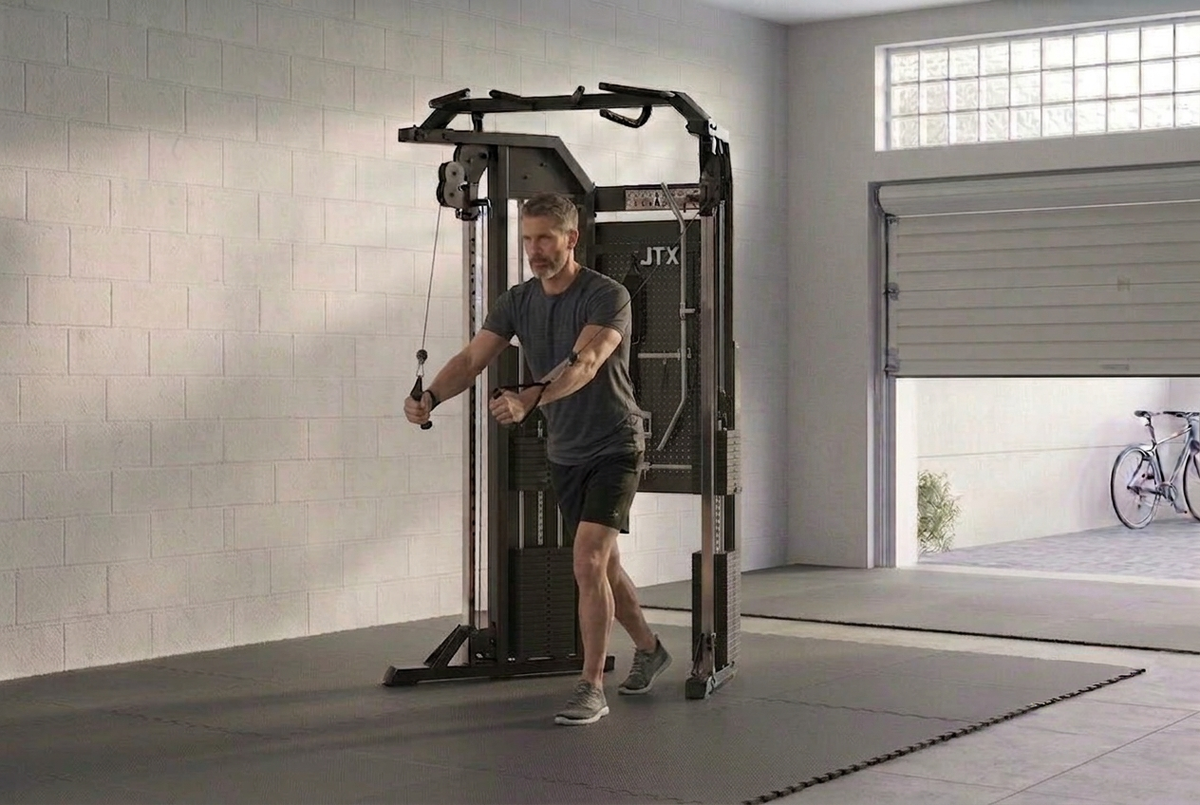

The JTX Calibre uses a 2:1 ratio. Its two 90kg stacks give around 45kg per hand, with the longer cable travel that makes wide flys, full-range rows and functional movements work properly. It also means the 5kg increments on the stack land as 2.5kg changes at the handle.
Pulley Adjustment Positions
The height you can set the pulleys at determines which exercises are available to you.
- More positions means more exercises. High for pulldowns and face pulls, mid for presses and rows, low for curls, upright rows and low-to-high work.
- It also means a better fit. A setting that puts the cable at shoulder height for someone 5'4" won't do the same for someone 6'2". More positions means both can find the right one.
- Check whether each side adjusts independently. Some machines move both carriages together, which rules out the asymmetric setups used for rotational and single-arm work.
Frame & Build Quality
-
Steel gauge and welding determine how stable the machine feels under heavy or fast movements. A frame that flexes is unpleasant to use and won't age well.
- Finish matters more at home than in a gym. Powder coating resists chips and corrosion better than paint, which matters if the machine lives in a garage or anywhere prone to damp.
-
Footprint — check the width and depth as well as the height, and allow clearance around it to actually use the cables.
Attachments Included
A usable starting set:
- Lat pulldown bar — pulldowns and straight-arm work
- Straight bar — rows, curls, pushdowns
- D-handle or triangle handle — close-grip rows and pulldowns
- Single handles (a pair) — flys, presses, single-arm work
- Rope — triceps, face pulls, core
- Ankle strap — glute and leg work
On rope length: ropes are commonly around 60cm. Longer ones give you more spread at the end of the movement, which makes a noticeable difference on face pulls and triceps extensions, and gives you room for kneeling core work.
The JTX Calibre Functional Trainer Cable Machine comes with all attachments as standard.
Extras Worth Having
An integrated pull-up bar. Adds a whole category of bodyweight training without taking any more floor space. Check the grip options and, more importantly, that you have the ceiling clearance to use it.
Attachment storage. This sounds minor and isn't. Six or seven attachments have to live somewhere, and if that's a pile on the floor or a box in the corner, two things happen: the room stops being usable for anything else, and you use the attachments less because getting them out is a job. A machine with an integrated pegboard or storage system keeps the floor clear and everything within reach — which matters most in exactly the rooms where these machines usually go.
How Much Space Do You Need For a Cable Machine?
Most listings give you the machine's dimensions but the following are also extremely to understand before you buy:
Machine footprint — the floor area the machine physically occupies. Make sure you have enough space to fit the machine.
Training footprint — the area you need to actually use it. Cable training means moving away from the machine: stepping out for a fly, lunging away from the upright, rotating through a chop.
Clearance height — the machine's height plus room above the pull-up bar.
A Cable Machine Isn't Right For You If...
- Your ceiling is under about 2.2m and you want a pull-up bar
- Heavy barbell squats and deadlifts are your priority - a rack and barbell setup may suit you better
- You're on a tight budget — dumbbells and a bench might be a better choice
- You need to move it regularly, or share a room that has to be cleared daily
- You have no ground-floor space and no way of getting heavy boxes upstairs
As a working guide, allow at least a metre in front of the machine and a metre either side for standing cable work. If you want to lunge or step out, closer to two metres in front. Cable crossovers need more again, because the whole point of the wider frame is the space between the pulleys.
The practical test before you buy: mark the machine's footprint on the floor with tape, then stand where you'd stand to do a chest fly and extend both arms. If you hit a wall, a radiator or a door that needs to open, the machine is too big for the room — regardless of whether it technically fits.
Frequently Asked Questions
Is a cable machine better than free weights.
Neither, they do different things. Free weights are cheaper and better for heavy squats and deadlifts. Cables give constant tension and let you train hard alone.
What ceiling height do I need for a functional trainer?
Most stand 200–230cm, and you need clearance above that to use a pull-up bar. A standard 240cm ceiling is usually fine; lofts and older garages often aren't. Measure before you order.
Are cable machines suitable for beginners, or do I need experience?
Yes - a guided cable machine is generally considered safer and more controlled for newer strength trainers than free weights, since there's no dropped-weight risk and no spotter needed.
What's the best cable machine for a home gym?
For most home gyms, a dual adjustable pulley (functional trainer) is the best choice. Two independently adjustable cable stations give you the widest exercise range from one machine.
Why does the weight on the stack feel different from the weight at the handle?
Because of the pulley ratio. The cable runs from the weight stack through a set of pulleys to your hand, and how it's routed changes how heavy the stack feels. On a 2:1 ratio, which is the most common setup on functional trainers, you pull the handle two feet for every one foot the stack rises — so you feel about half the weight you selected. On a 1:1 ratio, the weight you select is the weight you feel.
